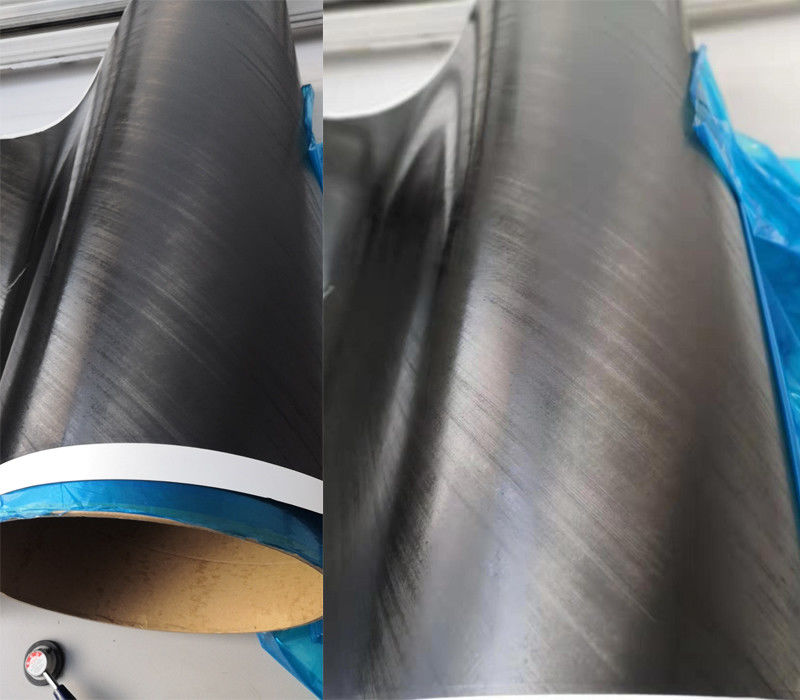

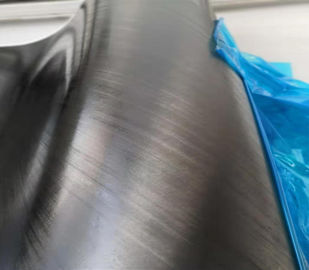

240GPA Coated Fiberglass Fabric Heat Insulation Excellent Dimensional Stability

240GPA Coated Fiberglass Fabric Heat Insulation Excellent Dimensional Stability

    • 240GPA Coated Fiberglass Fabric Heat Insulation Excellent Dimensional Stability
    • 240GPA Coated Fiberglass Fabric Heat Insulation Excellent Dimensional Stability
  • 240GPA Coated Fiberglass Fabric Heat Insulation Excellent Dimensional Stability

    Product Details:

    Place of Origin: China
    Brand Name: Skywell
    Certification: SGS
    Model Number: U24T05003-45

    Payment & Shipping Terms:

    Minimum Order Quantity: 100㎡
    Price: USD7/㎡
    Packaging Details: Polyester bag and foam rolling inside,Paper carton out of packing size 121cm*42cm*40cm
    Delivery Time: 5-8 days
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 100000㎡ per month
    Contact Now
    Detailed Product Description
    Carbon Fiber Type: 24Ton And T700 FAW: 50g/㎡
    RC: 45% Thickness: 0.100mm
    Total Weight: 136g/㎡ Tensile Strength: 4900MPA
    Strength Modulus: 240GPA Resin System: #4177
    Carbon Fiber: T700 / TR50S Scrim: 30#fiberglass
    High Light:

    raw carbon fiber

    ,

    custom carbon fiber

    240GPA Coated Fiberglass Fabric Heat Insulation Excellent Dimensional Stability

    1. What is the feature of carbon fiber ?

    Carbon Fiber's Specisal Features and Characterizing Performances

    • Light in Weight and Strong (Mechanical Performances)
    • Excellent Dimensional Stability and Heat Resistance (Thermal Characteristics)
    • Highly Electric Conductive and Excellent EMI Shielding Propaerty
    • Magnificant X-ray Permeability


    2. How to get Pan type carbon fiber  ?

    Carbon Fibers are manufactured by production processes as illustrated below. Manufacturers produce the fibers under different processing conditions to get assortments of products qualities.


    240GPA Coated Fiberglass Fabric Heat Insulation Excellent Dimensional Stability 0

    3. To be suit for different manufacturer progress.

    240GPA Coated Fiberglass Fabric Heat Insulation Excellent Dimensional Stability 1


    4. Application:


    • Sporting goods : Golf shafts , Fishing Rods, Bicycle parts , Etc
    • Industrial Applications :  Composite Robot Hands and Other LCD / Semiconductor Application ,Composite roller  ,Automotive parts ,Electronic Application, Etc.

    240GPA Coated Fiberglass Fabric Heat Insulation Excellent Dimensional Stability 2



    5. Resin system :


    Resin No.Resin TypeCuring Temperature ℃ Features & applications
    #450Epoxy130 High flex ,impact resistant,Fishing rob,Golf,rolling tube
    #469Epoxy130 General industry,sporting equipment, bicycle frame,bicycle rims,Racket,hockey stick
    #477Epoxy130 The better improved type than #469,Used in low RC ,high carbon modulus ,And for products with higher quality.Superior impact resistant ,better transparency,self-adhesive, sporting products like bike,racket,hockey,golf etc
    #4177Epoxy135 Used in low RC ,high carbon modulus ,And for products with higher quality.Superior impact resistant ,half of transparency, higher self-adhesive
    #4619Epoxy135 Not suitable for products asked by nice transparency apperance,And lower resin loss rate, general sporting products
    #502ABEpoxy130 Specially Designed for impact resistant, the #502A Most used in non-transparency products , And #502B used in transparency products ,like safe helmet
    #3016TGEpoxy160 impact resistant,most suitable for products that needs high temperature resistant,like road bicycle rims ,braking system
    #3017TGEpoxy180 Be suitable for products that needs high temperature resistant,flame retardant, TG point for 180℃ to 190℃
    #8005Epoxy180 Aircraft,PC products,Flame retardant, high standard under Germany DIN5510-2 ,And United State UL94V0.



    240GPA Coated Fiberglass Fabric Heat Insulation Excellent Dimensional Stability 3

    6. Carbon Fiber Specification :


    TypeTicknessFAW (g/㎡)RC (%)Total weight (g/㎡)Tensile strength (MPA)Tensile Modulus (GPA)
    U24T05003-450.10050451364900240
