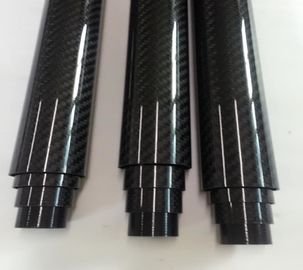

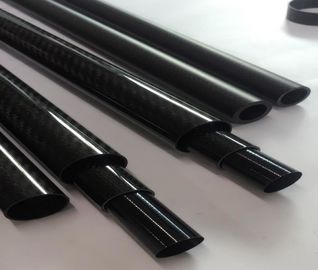

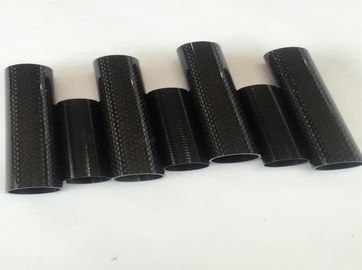

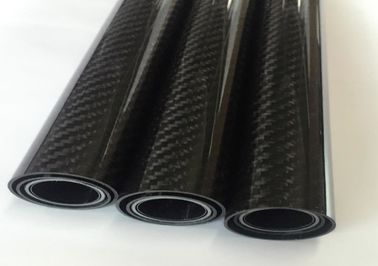

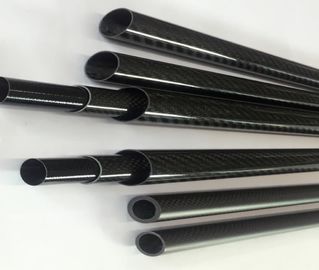

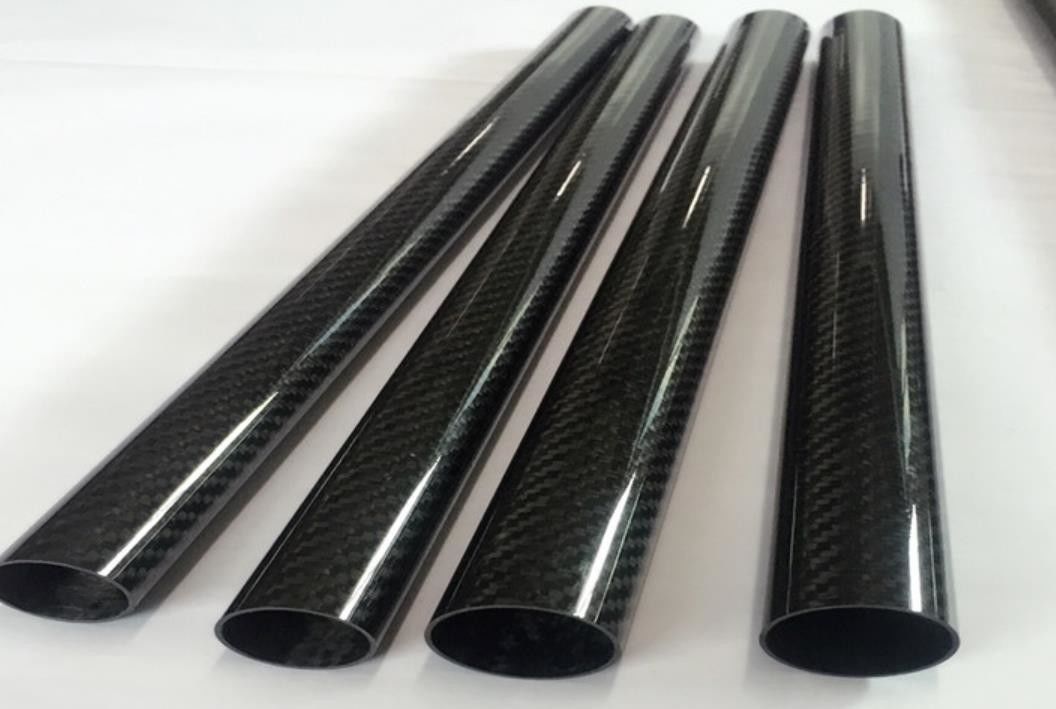

3K Twill Plain Carbon Fiber Round Tube High Strength Carbon Fiber Pipe

3K Twill Plain Carbon Fiber Round Tube High Strength Carbon Fiber Pipe

    • 3K Twill Plain Carbon Fiber Round Tube High Strength Carbon Fiber Pipe
    • 3K Twill Plain Carbon Fiber Round Tube High Strength Carbon Fiber Pipe
    • 3K Twill Plain Carbon Fiber Round Tube High Strength Carbon Fiber Pipe
    • 3K Twill Plain Carbon Fiber Round Tube High Strength Carbon Fiber Pipe
    • 3K Twill Plain Carbon Fiber Round Tube High Strength Carbon Fiber Pipe
    • 3K Twill Plain Carbon Fiber Round Tube High Strength Carbon Fiber Pipe
  • 3K Twill Plain Carbon Fiber Round Tube High Strength Carbon Fiber Pipe

    Product Details:

    Place of Origin: China
    Brand Name: Skywell
    Certification: SGS
    Model Number: Carbon fiber tubes

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 meters
    Price: USD3-10 Per meter
    Packaging Details: 100 meters / paper box
    Delivery Time: 5-8 days
    Supply Ability: 10000 meters per month
    Contact Now
    Detailed Product Description
    Features: High Strength And High Modulus And Light Materials: Carbon Fiber + Resin
    Item: Carbon Fiber Tubes Size: Custom Or At Sight Of Design
    Outward: 3K Plain / 3K Twill / Colorful Kevlar Diameter: 6mm-500mm
    Thickness: 1mm, 2mm, 3mm, 4mm, 5mm Painting Finish: Matte / Glossy
    Additional CNC: Yes Delivery: 5-7 Days After Confirmed Order
    Packing: 1 Set / Paper Box
    High Light:

    carbon fiber pipe

    ,

    carbon fiber sheets

    3K Twill Plain Carbon Fiber Round Tube High Strength Carbon Fiber Pipe



    The carbon fiber tubes , one product can replace steel or metal tubes in some industry .

    The high strength and high modulus of tubes is better than steel . And the weight of carbon fiber tubes is pretty light.







    Phsical Parameter:

    Resin type Epoxy
    Tolerances +/-1-2mm
    Density >1.65g/cm3
    Stiffness >80-120Gpa
    Bending Strength >80-120Gpa
    Tensile Strength >650Mpa
    Service Temperature -40F to 248F



    3K Twill Plain Carbon Fiber Round Tube High Strength Carbon Fiber Pipe 0



    Remark: OD means outer diameter, ID means inner diameter. Maximum length could be 5 meters.

    OD*ID*LENGTH mm OD*ID*LENGTH mm OD*ID*LENGTH mm OD*ID*LENGTH mm OD*ID*LENGTH mm
    5/3/1000 13/11/1000 23/21/1000 33/31/1000 47/45/1000
    6/4/1000 14/12/1000 24/19/1000 34/32/1000 48/44/1000
    7/5/1000 15/10/1000 24/22/1000 35/25/1000 48/46/1000
    7/6/1000 15/11/1000 25/22/1000 35/33/1000 50/46/1000
    8/6/1000 15/13/1000 25/23/1000 36/34/1000 50/44/1000
    8/7/1000 16/12/1000 26/24/1000 37/35/1000 50/46/1000
    9/7/1000 16/14/1000 27/25/1000 38/35/1000 50/48/1000
    9/8/1000 17/15/1000 28/24/1000 38/36/1000 60/57/1000
    10/6/1000 18/16/1000 28/26/1000 40/36/1000 Customized
    10/8/1000 19/17/1000 29/25/1000 40/38/1000
    10/9/1000 20/16/1000 29/27/1000 41/39/1000
    11/8/1000 20/18/1000 30/26/1000 42/40/1000
    11/9/1000 22/18/1000 30/28/1000 43/41/1000
    12/6/1000 22/19/1000 31/28/1000 44/42/1000
    12/10/1000 22/20/1000 31/29/1000 45/43/1000
    12/11/1000 23/19/1000 32/30/1000 46/44/1000



    3K Twill Plain Carbon Fiber Round Tube High Strength Carbon Fiber Pipe 13K Twill Plain Carbon Fiber Round Tube High Strength Carbon Fiber Pipe 23K Twill Plain Carbon Fiber Round Tube High Strength Carbon Fiber Pipe 3



    Application :

    Carbon fiber bicycle tube, photography tripod tube, golf clubs for sports and leisure, semi-finished fishing and fishing rods,

    arrows, poles, ski poles, masts for ships, carbon fiber shafts for equipment, carbon fiber rollers for equipment, etc.



    3K Twill Plain Carbon Fiber Round Tube High Strength Carbon Fiber Pipe 4
