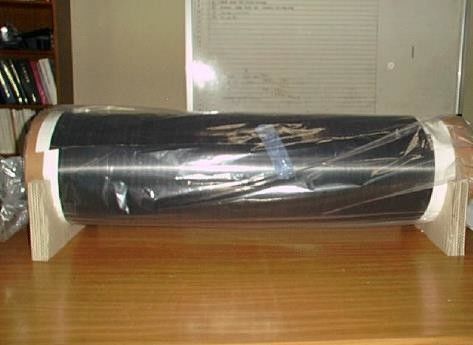

0.200mm Thickness Carbon Fiber Raw Material 24 Ton Faw 200g Resin Content 34%

0.200mm Thickness Carbon Fiber Raw Material 24 Ton Faw 200g Resin Content 34%

  • 0.200mm Thickness Carbon Fiber Raw Material 24 Ton Faw 200g Resin Content 34%
  • 0.200mm Thickness Carbon Fiber Raw Material 24 Ton Faw 200g Resin Content 34%
0.200mm Thickness Carbon Fiber Raw Material 24 Ton Faw 200g Resin Content 34%
Product Details:
Place of Origin: China
Brand Name: Skywell
Certification: SGS
Model Number: U24T20000-34
Payment & Shipping Terms:
Minimum Order Quantity: 100㎡
Price: USD7/㎡

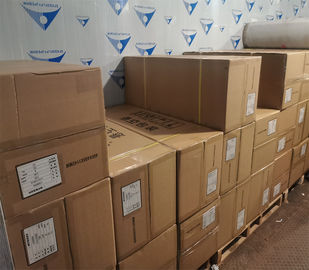

Packaging Details: Polyester bag and foam rolling inside,Paper carton out of packing size 121cm*42cm*40cm
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000㎡ per month
Contact Now
Detailed Product Description
Carbon Fiber Type: 24Ton And T700 FAW: 200g/㎡
RC: 34% Thickness: 0.200mm
Total Weight: 303g/㎡ Tensile Strength: 4900MPA
Strength Modulus: 240GPA Density: 1.82
Resin System: #4177 Carbon Fiber: T700 / TR50S
Scrim: No
High Light:

raw carbon fiber

,

custom carbon fiber



0.200mm Thickness Carbon Fiber Raw Material 24 Ton Faw 200g Resin Content 34%

1. What is the feature of carbon fiber ?

Carbon Fiber's Specisal Features and Characterizing Performances

  • Light in Weight and Strong (Mechanical Performances)
  • Excellent Dimensional Stability and Heat Resistance (Thermal Characteristics)
  • Highly Electric Conductive and Excellent EMI Shielding Propaerty
  • Magnificant X-ray Permeability


2. How to get Pan type carbon fiber  ?

Carbon Fibers are manufactured by production processes as illustrated below. Manufacturers produce the fibers under different processing conditions to get assortments of products qualities.


0.200mm Thickness Carbon Fiber Raw Material 24 Ton Faw 200g Resin Content 34% 0

3. To be suit for different manufacturer progress.

0.200mm Thickness Carbon Fiber Raw Material 24 Ton Faw 200g Resin Content 34% 1
4. Application:


  • Sporting goods : Golf shafts , Fishing Rods, Bicycle parts , Etc
  • Industrial Applications :  Composite Robot Hands and Other LCD / Semiconductor Application ,Composite roller  ,Automotive parts ,Electronic Application, Etc.

0.200mm Thickness Carbon Fiber Raw Material 24 Ton Faw 200g Resin Content 34% 2



5. Resin system :

Resin No.Resin TypeCuring Temperature ℃Features & applications
#450Epoxy130High flex ,impact resistant,Fishing rob,Golf,rolling tube
#469Epoxy130General industry,sporting equipment, bicycle frame,bicycle rims,Racket,hockey stick
#477Epoxy130The better improved type than #469,Used in low RC ,high carbon modulus ,And for products with higher quality.Superior impact resistant ,better transparency,self-adhesive, sporting products like bike,racket,hockey,golf etc
#4177Epoxy135Used in low RC ,high carbon modulus ,And for products with higher quality.Superior impact resistant ,half of transparency, higher self-adhesive
#4619Epoxy135Not suitable for products asked by nice transparency apperance,And lower resin loss rate, general sporting products
#502ABEpoxy130Specially Designed for impact resistant, the #502A Most used in non-transparency products , And #502B used in transparency products ,like safe helmet
#3016TGEpoxy160impact resistant,most suitable for products that needs high temperature resistant,like road bicycle rims ,braking system
#3017TGEpoxy180Be suitable for products that needs high temperature resistant,flame retardant, TG point for 180℃ to 190℃
#8005Epoxy180Aircraft,PC products,Flame retardant, high standard under Germany DIN5510-2 ,And United State UL94V0.











0.200mm Thickness Carbon Fiber Raw Material 24 Ton Faw 200g Resin Content 34% 3

6. Carbon Fiber Specification :


TypeTicknessFAW (g/㎡)RC (%)Total weight (g/㎡)Tensile strength (MPA)Tensile Modulus (GPA)
U24T20000-340.200200343034900240
