E Fiber Glass Heat Resistant Tape Mesh Conveyor Belt Width 300mm Or 400mm

Product Details:

Place of Origin:	China
Brand Name:	Skywell
Certification:	SGS
Model Number:	SKT001

Payment & Shipping Terms:

Minimum Order Quantity:	10 meters
Price:	USD2-5 per piece
Packaging Details:	Cutom
Delivery Time:	15-20 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	10000 piece per month

Contact Now

Detailed Product Description

Materials:	E-fiber Glass And Coated	Size:	Custom
Operating Temperature:	-140℃ To 360℃	Color:	Black, Brown And Dark Brown
Mesh Size:	11mm，22mm，44mm，1010mm	Feature:	Weather Resistance
Highlight:	coated tape , barbecue sheet

E Fiber Glass Heat Resistant Tape Mesh Conveyor Belt Width 300mm Or 400mm

Glass fiber cloth is coated with resin to make (PTFE) conveyor belt.
The mesh conveyor belt is defined by the size of the mesh, mainly 1 × 1MM, 2 × 2.5MM , 4 × 4MM, 10 × 10MM
And other single and double weft grid conveyor belts according to the warp and weft,
high-temperature cloth is based on thickness to distinguish specifications, the thinnest can reach 0.08MM

Feature :

Used in low temperature -196 ℃, high temperature 300 ℃, with weather resistance. After practical application, if placed at 250 ℃ for 200 days, the strength will not be lowered, and the weight will not be reduced; if placed at 350 ℃ for 120 hours, the weight will only decrease by about 0.6%; It can maintain its original softness under ultra-low temperature.
Non-adhesive: It is not easy to adhere to other substances. Easy to clean all kinds of oil stains, stains or other attachments on its surface; pastes, resins, coatings, etc., almost all sticky substances can be simply removed
Resistant to chemical corrosion, resistant to strong acid, strong alkali, aqua regia and organic solvents.
Good dimensional stability (elongation coefficient is less than 5 ‰) and high strength. Has good mechanical properties.
Resistance to bending fatigue, can be used for smaller wheel diameters.
Drug resistance, resistant to almost all pharmaceutical items.
Fire and flame retardant.
Air permeability --- the air permeability of the conveyor belt, reducing heat source consumption and improving drying efficiency

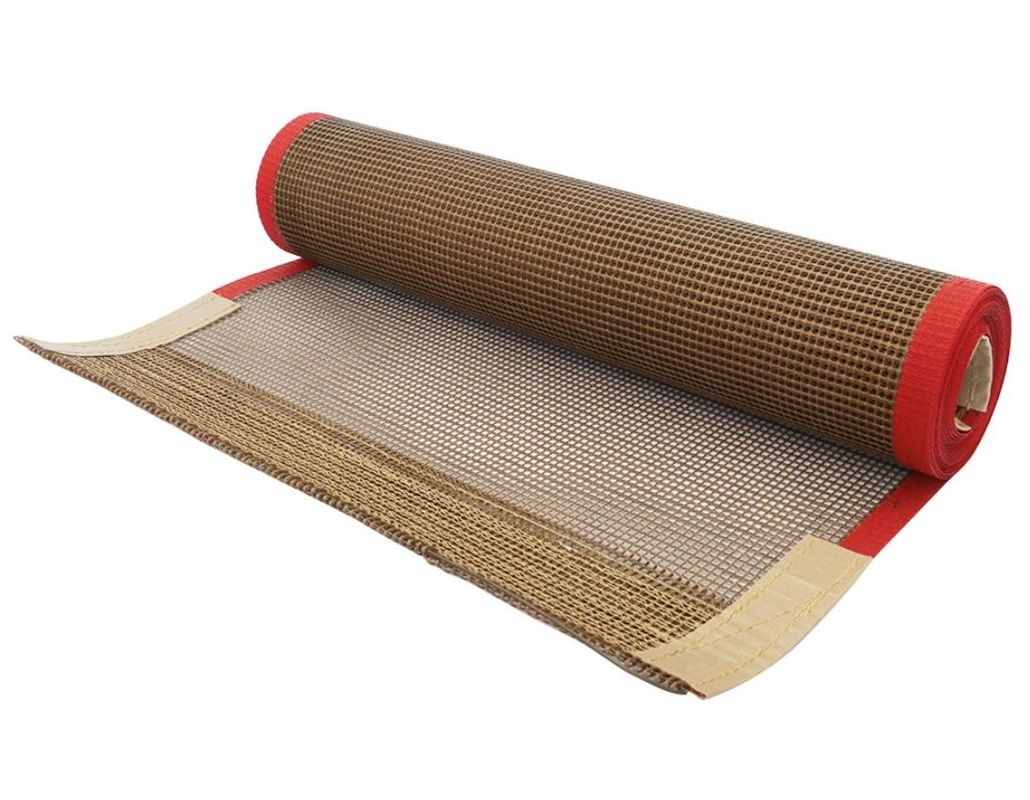

E Fiber Glass Heat Resistant Tape Mesh Conveyor Belt Width 300mm Or 400mm 0
Specification:

Style	Mesh size (mm)	Materials	Thickness (mm)	Weight (g/m²)	Operating Temperature (℃)	Max Width (mm)	Tensile strength (N/cm)
2001	1*1	E-fiberglass	0.5	370	-70--260	4000	310/290
2002	2*2	E-fiberglass	0.7	450	-70--260	4000	350/310
2004	4*4	E-fiberglass	1.0	450	-70--260	4000	390/320
2008	8*8	E-fiberglass	1.0	550	-70--260	4000	395/370
2010	10*10	E-fiberglass	1.2	450	-70--260	4000	360/300
2015	0.5*1.0	E-fiberglass	0.5	420	-70--260	4000	310/290
2025	2*2.5	E-fiberglass	0.9	600	-70--260	3000	390/320

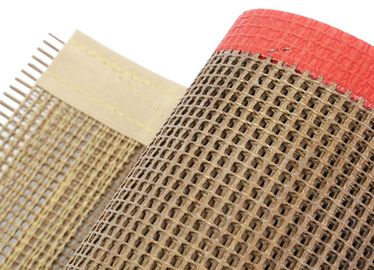

E Fiber Glass Heat Resistant Tape Mesh Conveyor Belt Width 300mm Or 400mm 1

Application :
conveyor belt has the characteristics of easy ventilation of the mesh,
so it is widely used in textile printing and dyeing, printing drying guide belt, screen printing, ultraviolet drying, UV series,
light curing machine, offset printing machine, loose dryer, Non-woven dryers, high frequency dryers, food dryer guide belts,
temperature-controlled ovens, fast drying of flux-type inks, and drying of general moisture-containing items

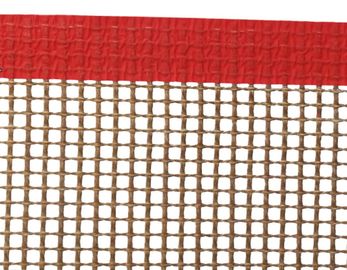

E Fiber Glass Heat Resistant Tape Mesh Conveyor Belt Width 300mm Or 400mm 2
