| Place of Origin: | China |
| Brand Name: | Skywell |
| Model Number: | E200S |
| Minimum Order Quantity: | 10kg |
|---|---|
| Price: | USD20 per m2 |
| Packaging Details: | Plastic film and release paper inside , And Paper box outside |
| Delivery Time: | 5-15days |
| Payment Terms: | T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 1000 m2 per month |
| Item No.: | E200S | Adhesive Type: | Epoxy |
|---|---|---|---|
| Nominal Weight: | 0.015 Lb/ft², 0.03 Lb/ft², 0.045 Lb/ft², 0.06 Lb/ft², 0.085 Lb/ft² | Storage Considtion: | -3℃ To 3℃ |
| Application: | Metal Bonding, Metal To Composite Bonding, Structural Bonding, Surfacing | Color: | Blue, Green, Pink, Red, Yellow |
| High Light: | carbon fiber foam core,composite core materials |
||
Lighte Weight Composite Foam Core Epoxy Adhesive Type For Metal Bonding

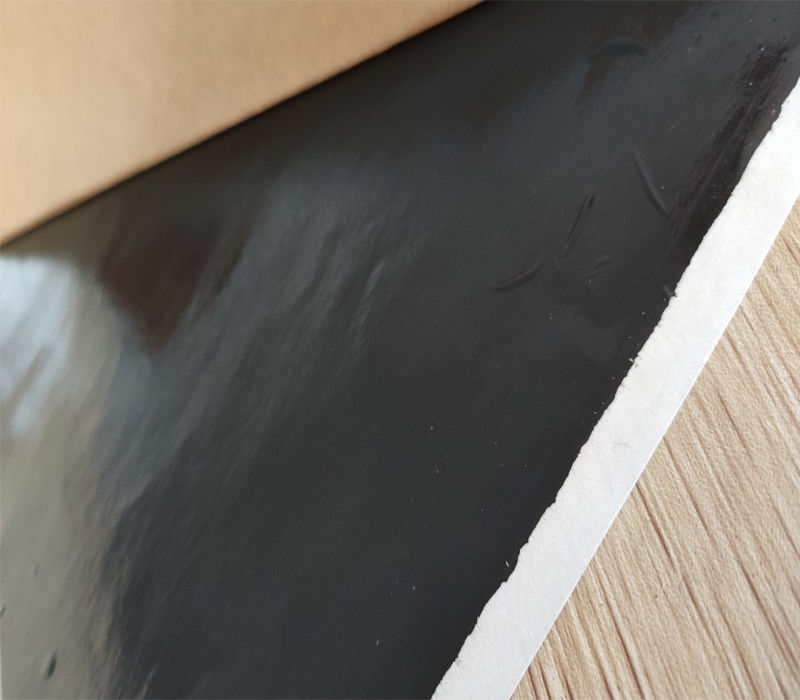

What is Structural Adhesive Film?
Structural adhesive film allows designers to innovate more on parts and reduce the total number of rivets required on the structure. Among them, thermosetting modified epoxy resins can be used to bond various substrates, including metals, honeycombs and composite materials. Structural adhesive film has various weights and thicknesses, can be designed according to the product, can cut various shapes, and different sizes to meet the various needs of product developers for product development, while maintaining structural integrity Make the structure lightest.
For integral bonding or honeycomb sandwiches, for mesh honeycombs. These films can be cured from temperatures as low as 180 ° F to as high as 350 ° F. Because these films are clean and do not require mixing, they can increase the efficiency of the design process. They are easier to use than typical pasty adhesives.
Specification :
| Adhesive Type | Epoxy |
| Capabilities | Aircraft Maintenance & Production Efficiency |
| Expansion Ratios | 1:1 |
| Cure rate | 90 Minutes |
| Cure Temperature | 120℃60min,150℃30min |
| Nominal Weight |
0.015 lb/ft², 0.03 lb/ft², 0.045 lb/ft², 0.06 lb/ft², 0.085 lb/ft²
|
| Shelf Life | 12 month |
| Storage Environment | -3°C to 3°C |
Application:
As a core material, this product is a supplement to carbon fiber products, high density and lighter weight. Improved product appearance and performance. It adapts to any epoxy resin system and is a good high density foaming material.
Metal Bonding, Metal to Composite Bonding, Structural Bonding, Surfacing
Color custom : Black and yellow
